Cassava starch making machine

Cassava starch making machine description:

1) The whole cassava starch processing line by DOING cassava starch making machine without any additives added in the processing.

2) The entire cassava starch making process adopts mature technology, advanced, scientific and rational cassava starch making machine.

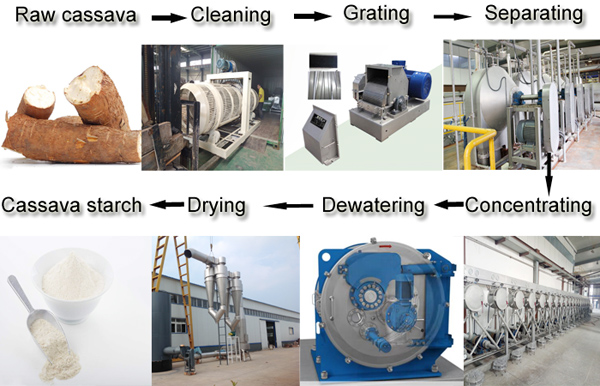

3) Cassava starch making process includes: Cassava cleaning and washing-- Cassava grating-- Cassava starch and residue separation-- Cassava starch concentration and refining-- Cassava starch dewatering-- Cassava starch drying-- Cassava starch packing etc,.

Cassava starch making machine

Following is the description of cassava starch making machine used for cassava starch processing:

a) Cleaning section (dry sieve, )

b) Processing section (rasper, centrifuge sieve, fine fiber sieve, hydrocyclone station, peeler centrifuge and etc.)

c) Drying section (flash dryer, automatic packing machine)

a) Cleaning section

Dry sieve and paddle washing machine are widely used cassava starch making machine for cleaning and washing. Dry sieve is used to remove sand, stone, grass and other small materials of cassava roots. And paddle washing machine major in removing the peels, muddy, sundries and so on.

Main features of these two cassava starch making machine

Low power consumption, big handling capacity, well cleaning, stable operation, and easy maintenance etc.

Cassava washing machine

b) Processing section

1.Cassava crushing machine: This cassava starch making machine is used for crush cassava into starch slurry so as to release the free starch out of cassava. It determines the starch yield.

Main features of DOING rasper: This cassava starch making machine has feature of low energy consumption, high capacity and easy maintenance. DOING rasper introduces Germany Optibelt and Sweden bearing which offers long service life. What’s more, the breaking rate of rasper is more than 94%.

2.Starch separation machine: Centrifuge sieve and fine fiber sieve are widely used cassava starch making machine for separating fibers and starch.

Main features of centrifuge sieve and fine fiber sieve:

Large capacity, good screening effect and high starch extraction rate.

Automatic front and back washing system guarantee good screen penetration.

Cassava starch separating machine

3. Starch refining hydrocyclone: Used for separate insoluble protein and residual soluble protein and other impurities from the starch. This cassava starch making machine has multifunction of concentration, recover, washing and refining for starch slurry.

Features of DOING hydrocyclone station:

Fully stainless steel to be sure there is no corrosion.

Advanced surface treatment craft oil and dirty resisting.

Widely used for starch extraction in starch processing factory.Hydrocyclone pipe made form material of strengthened nylon.

Sound rigidity and durability; compact and elegant.

This cassava starch making machine can be designed according to the features of different material to get the better starch separation.

Pipeline of hydrocyclone station passes computer optimization design.

Special hermetic design, friendly operation.

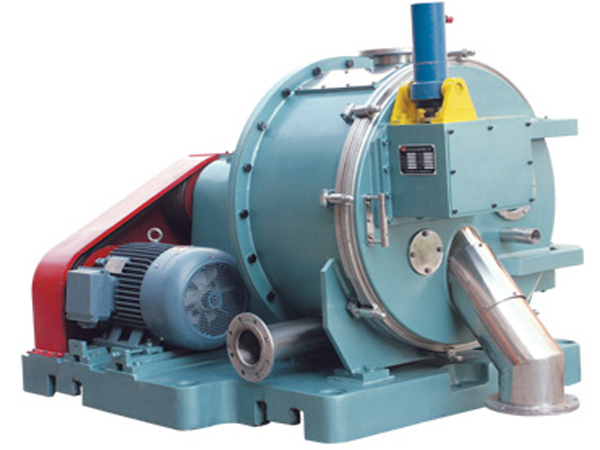

Cassava starch dewatering machine

4.Starch dewatering machine: Peeler centrifuge is widely used cassava starch making machine for starch dewatering.

Main features of peeler centrifuge: Inner stainless steel, compact structure and nine design. Auto scraper-unloaded, automatically controlled.Widely used for separation of suspension in starch processing, after dehydration starch content water below 38%.Siphon type peeler centrifuge is an effective cassava starch making machine which can decrease moisture content to 36.5%.Low energy consumption, small area, friendly operation and stable running.

c) Drying and packing section

Airflow flash dryer: Flash dryer is widely used cassava starch making machine for starch drying process. Especially the air-stream flash dryer is an invention patented product. Then the finished starch is packed by automatic packing machine.

Main features of flash dryer: This air-stream crash dryer machine has feature of high efficiency, short drying time, easy operation and maintenance. Besides, this cassava starch making machine equipped with a special cooling system which can ensure the moisture uniformity of final product.
