Cassava starch centrifugal sieve

Cassava starch centrifugal sieve

Structure of cassava starch centrifugal sieve:

Cassava starch centrifugal sieve mainly consists of bearing, screen basket, outer casing, bracket, water tank, back-flushing system, conveying system and motor. In addition, according to the work needs to be equipped with a slag pump, a defoaming pump, according to user needs can also be equipped with adjustable seat plate.

Working principle:

After the material enters the sieve body, it is distributed on the screen by the distribution device. The screen meshes of cassava starch centrifugal sieve close to the inner wall of the cone drum, and the drum is fixed on the rotating shaft. The motor drives the rotating shaft to rotate, therefore screen rotates as the drum rotates. The high-speed rotation of the screen produces a strong centrifugal force. The starch fine particles and the liquid layer quickly pass through the sieve hole by means of centrifugal force, and become the undersize material, which flows out from the starch milk outlet of cassava starch centrifugal sieve. While the fiber and part of the liquid layer flow along the cone-shaped screen and pass through the screen, flowing out from the fiber outlet.

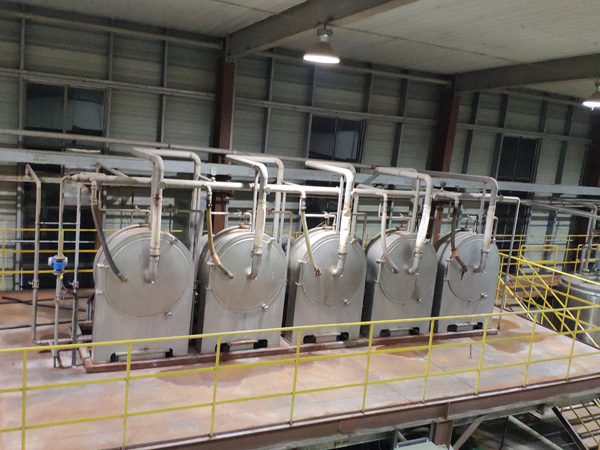

Cassava starch centrifugal sieve

Features of cassava starch centrifugal sieve:

1. With the latest international technology, centrifugal sieving machine combining the experience of China Agricultural University and Doing Company

2. Large capacity, stable working,higher starch extration rate,easy installation for cassava starch centrifugal sieve

3. Widely used in the starch processing plant

Main technical parameters of cassava starch centrifugal sieve

Basket diameter(mm)	Main shaft speed(r/min)	Working model	Power	Dimension(mm)	Weight(t)
850	800-1600	Continuous	18.5/22/30/37	1200×1900×2100	1.5



Application of cassava starch centrifugal sieve

1. Sweet potato starch production line

2. Potato starch production line

3. Cassava starch production line

4. Wheat starch production line
