Hammer crusher
Description of hammer crusher:
The hammer crusher is made up of machine cover,box, engine base, principal axis,hammer and mesh pieces.and the hammer crusher mainly used for crushing of Potato ,Sweet potato, cassava etc.
The hammer crusher working principle :

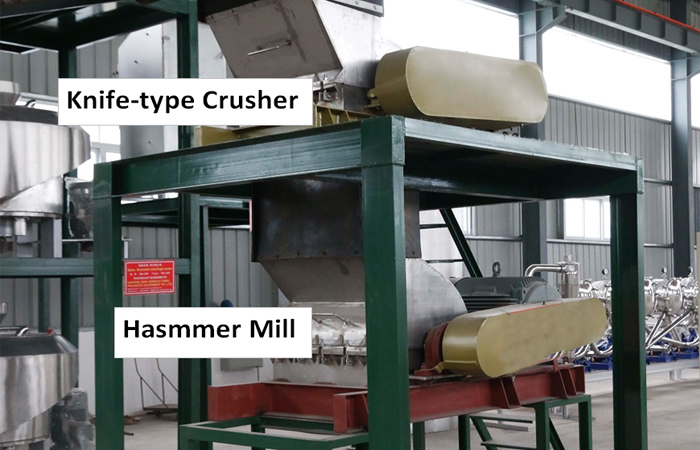

The following pictures indicates the internal structure and main parts of Knife-type Crusher and Hammer crusher.
Features of hammer crusher:
1.Low Power Consumption
2.large handing capacity
3.Small crushing size

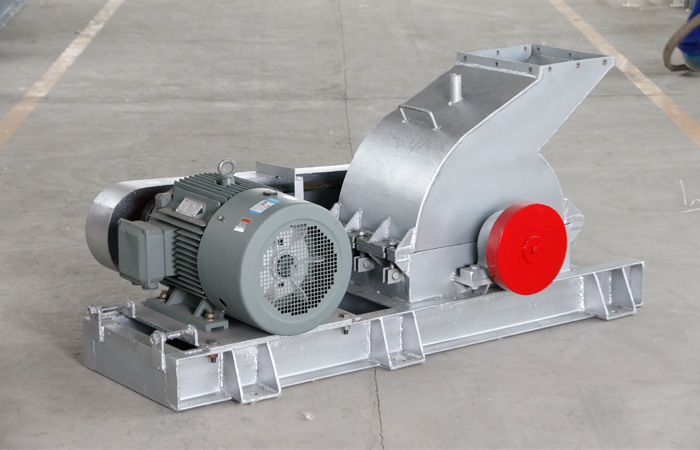

Hammer crusher
Main technical parameters of different models of hammer crusher:
| Model | Output/m3 | Powder/KW | Outer size（mm） |
| FS48-24 | 2.5-3 | 15 | 1500*800*700 |
| FS48-32 | 4-5 | 22 | 1500*800*760 |
| FS48-40 | 5-6 | 30 | 1500*900*920 |
| FS60-60 | 6.5-8 | 37 | 2200*1000*950 |
| FS60-72 | 8-10 | 45 | 2200*1100*950 |
| FS60-84 | 12-13 | 55 | 2200*1200*950 |
| FS60-108 | 15-18 | 75 | 2200*1400*950 |
Hammer crusher
Application of hammer crusher:
1. Cassava starch production line
2. Potato starch production line
3. Sweet potato starch production line
4. Syrup production line
