Horizontal centrifugal sieve

Horizontal centrifugal sieve is a professional starch extraction equipment for potato starch production, mainly usde for potato starch fiber separation and starch extraction. Compared to vertical centrifugal sieve, the horizontal centrifugal sieve has advantages as below:

1. Llarger capacity, more stable, higher potato starch extraction rate, more thorough discharging and easy to install.

2. This horizontal centrifugal sieve fully automatic design, controlled by CIP system, easy to operation.

3. Under the action of the backwash tube on the back of the screen, it can remove the fine particles adsorbed by the sieve, effectively avoid the sieve blocking and ensure the normal operation of the centrifugal sieve.

Horizontal centrifugal sieve

Horizontal centrifugal sieve working principle:

Potato after rasping, the potato starch milk enter the bottom of the sieve evenly, the sieve basket make high speed rotation driven by the drive part. The starch milk enters the sieve surface through the powder mechanism. Under the action of gravity and centrifugal force, the starch milk moves in a circle along the sieve and moves along the edge of the sieve. Under the washing water system, small starch granules discharge from the sieve in the processing, large starch granules can't through the sieve of horizontal centrifugal sieve, gradually sinking into the slag bin and discharged by the slag pump. The potato residue and starch milk are continuously washed in the process of moving to the edge of the sieve basket, maximum removal of free starch adsorbed in starch milk. Then the clean starch slurry can be processing in the following section.

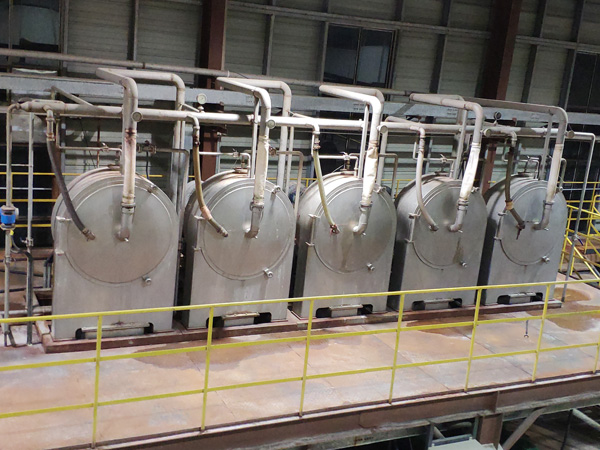

Horizontal centrifugal sieve used in starch processing plant

Technical parameters of horizontal centrifugal sieve:

Basket diameter(mm)	Main shaft speed(r/min)	Working model	Power	Dimension(mm)	Weight(t)
850	800-1600	Continuous	18.5/22/30/37	1200×1900×2100	1.5



Application of horizontal centrifugal sieve

1. Sweet potato starch production line

2. Potato starch production line

3. Cassava starch production line

4. Corn starch production line
