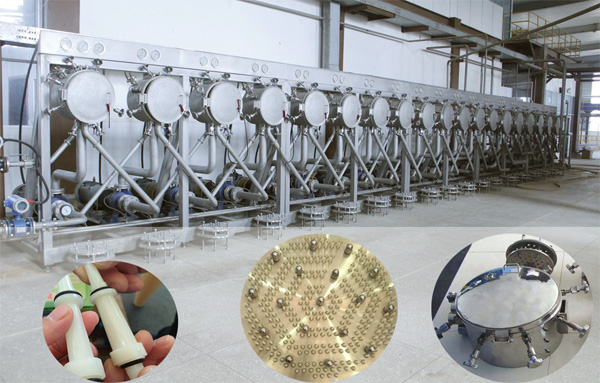

Hydrocyclone starch separator

Working principle of hydrocyclone starch separator:

Starch milk and wash water are the upstream way through the washing system, referring main flow chart of multi-stage hydrocyclone starch separator. Washing system usually consists of 6 to 12 stages, and each cyclone consists of several parallel-connected hydro-cyclone tubes.

Each stage hydrocyclone starch separator has feed interface, bottom stream interface and overflow interface.The bottom stream containing condensed milk, while the overflow containing soluble substances and small slag. The overflow of certain stage together with the bottom flow of previous stage is conveyed into the feeding bin of the middle stage. Starch milk is fed from first stage then conveyed through each stage in sequence, it is finally discharged from the last stage.

Overflow contains dilute starch milk and impurities to be removed. Washing water enters from feeding pump in the last stage and backflows in sequence until the first stage then finally overflows there, discharging the impurities such as protein small fiber residue.

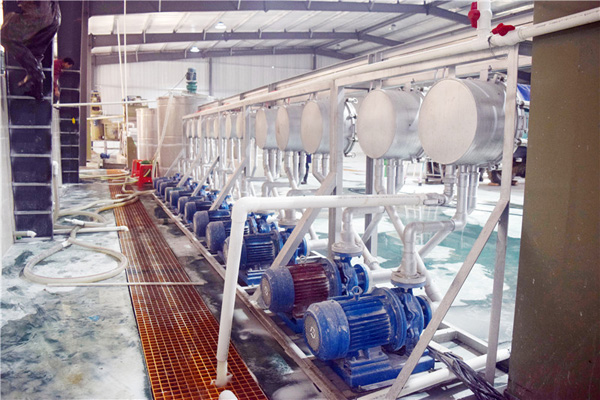

Hydrocyclone starch separator

Features of hydrocyclone starch separator:

1). The cyclone tube is made of reinforced nylon material with high strength and good wear resistance.

2). The complete set of hydrocyclone starch separator integrates the functions of concentration, recovery, washing and separation of fine slag. The process is simple and the product quality is stable and reliable.

3). It has advantages of compact structure, high separation precision and good sealing effect.

Main parameters of hydrocyclone starch separator

	Size
Model	A	B	C	D
YT-57	￠400	320	DN50	DN40
YT-81	￠460	320	DN65	DN50
YT-116	￠516	320	DN80	DN65

Hydrocyclone starch separator



Application of hydrocyclone starch separator

1. Sweet potato starch production line

2. Potato starch production line

3. Cassava starch production line
