Horizontal peeler centrifuge

Horizontal peeler centrifuge is a continuous and intermittent operation centrifuge. Both automatic control and manual control systems are available in the horizontal peeler centrifuge. The process of feeding, separating, washing, dewatering, discharging and reproducing filter cloth during the operation of centrifuge are generally completed in the full speed state, the single cycle time is short, the amount of treatment is large, and the dry filter slag and good washing effect can be obtained.

Horizontal peeler centrifuge is widely used in chemical, food, light industry, pharmaceutical, starch and other industries. Horizontal peeler centrifuge is suitable for the suspension containing coarse, medium and fine particles, such as ammonium carbonate, PVC, wood modified starch and so on. As a professional potato, sweet potato and cassava starch processing machine manufacturer, our peeler centrifuge also professional used in the starch production, mainly for starch slurry dehydration.

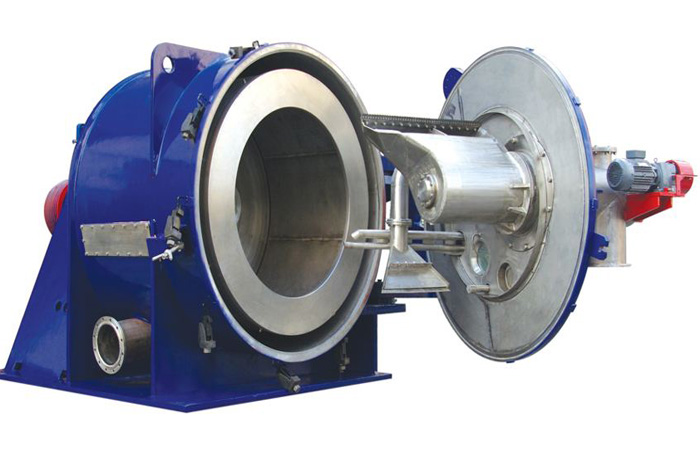

Peeler centrifuge



Our machine of horizontal peeler centrifuge is solid-liquid separation equipment which adopts continuous operation and intermittent discharging. It regulates speed by frequency convertor, breaking system adopts dynamic braking. Through such procedures as product level detection, speed inspection, shaft temperature and vibration monitoring, the whole separation process is automatic circulative work(including feeding, dehydration, washing, discharging and etc.) Also manual operation mode is available which can be changed over from full-automation mode by customer’s will.

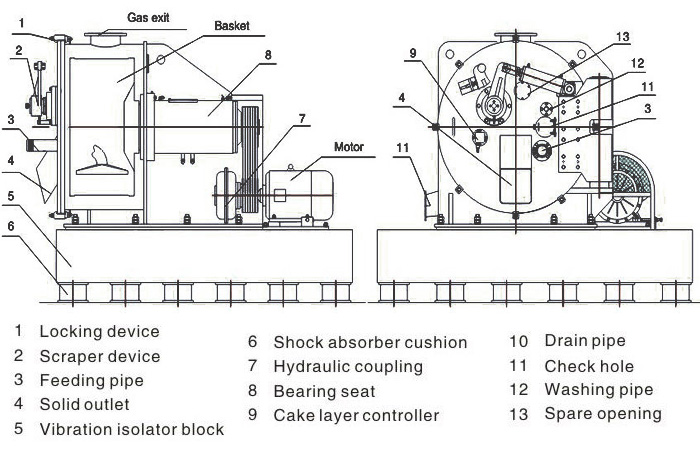

Peeler centrifuge structure

The working principle of horizontal peeler centrifuge:

After the motor drives the drum to reach full speed, the feed valve opens automatically. The suspension is moved into the drum with the feed pipe. The liquid phase is centrifuged through the filter and the drum wall filter hole, and the solid material is cut into the drum. After the motor drives the drum to reach full speed, the feed valve opens automatically. The suspension is moved into the drum with the feed pipe. The liquid phase is centrifuged through the filter and the drum wall filter hole, and the solid material is cut into the drum.

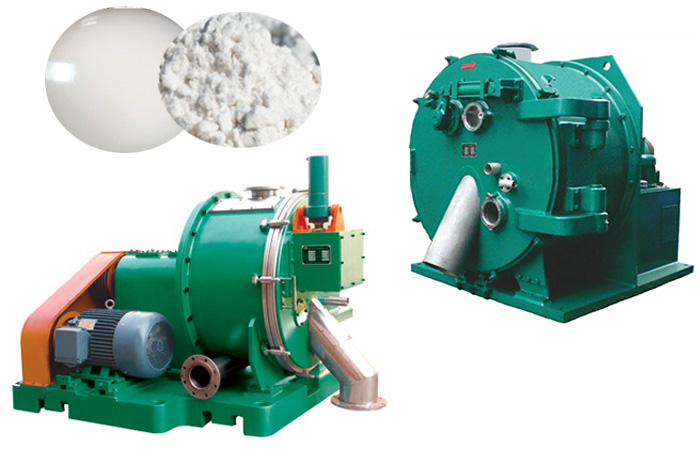

DOING peeler centrifuge



Main configurations of horizontal peeler centrifuge:

1. PLC control for long-distance monitoring: touch-screen dialogue for easy maintenance and operation.

2.  Action elements with automatic electric-pneumatic/hydraulic control.

3. Two discharging modes available: chute discharging featuring simple construction, and discharging through scroll conveyor and scraper featuring high catching rate of solid cake and effectively prevent blocking.

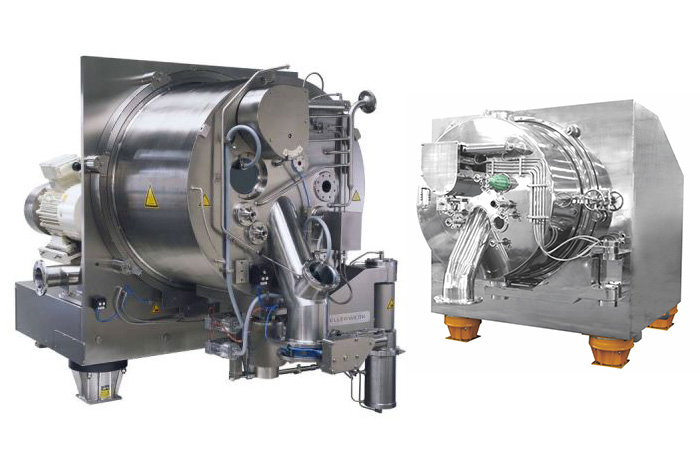

Fully stainless steel peeler centrifuge

Main features of horizontal peeler centrifuge:

1. Automatic operation without care can achieve man-machine conversation, convenient operation and maintenance.

2. The whole process of feeding, primary filtration, washing, fine filtration and unloading is monitored

3. Independent electrical control box, remote control can be realized.

4. Safety protection: includes rotation speed monitoring, over-vibration protection, cover opening protection, motor overload and overheat protection, dual control with both mechanical and electrical for scraper.

5. Fully enclosed structure, silicone rubber.

6. The motor and centrifuge main engine are installed as a whole to facilitate users and it can reduce the space occupied by the machine.

7. The contact parts of centrifuge and separation medium are made of stainless steel, which improves the corrosion resistance and hygienic requirements of the machine.

8. Using of siphon system and the production efficiency is high

9. Equipped with backwashing device, it can wash the outer side of the centrifuge drum and the inner side of the shell, so as to achieve the cleanliness requirement of the process.

Doing Company peeler centrifuge technical parameters:

Model	GK-800N	GK(H)-1250(EW)	GK(H)-1600N
Filter area(m2)	1.13	2.36	4.68
Maximum load(kg)	150	450	996
Maximun load(L)	100	355	830
Material	Stainless steel	Stainless steel	Stainless steel
Bowl diameter(mm)	800	1250	1600
Bowl length(mm)	450	600	1000
Rotating speed(r/min)	1550	1200	950
Separating factor	1070	1006	808
Dimension(mm)	2030*1960*1530	2870*2470*1955	4050*2745*2295
Weight(kg)	5500	11150	16550
Power(kw)	45	90	132
