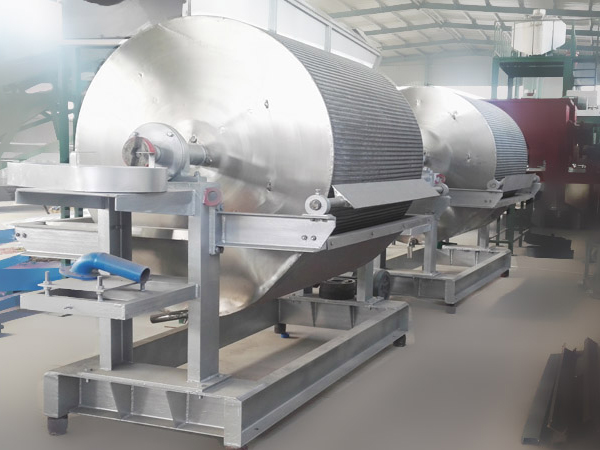

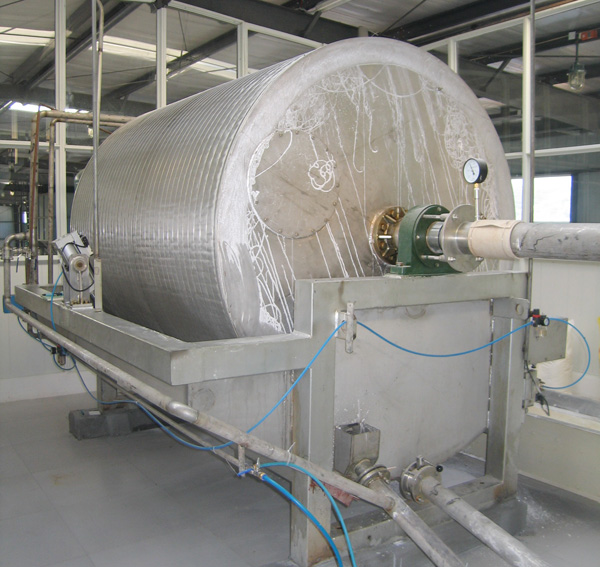

Vacuum dehydrator

Introduction of vacuum dehydrator

Application of vacuum dehydrator :Vacuum dehydrator is widely used for the starch dehydration in medicine, food, chemical engineering and other industries.

All the equipment made of high quality stainless steel, rotating drum speed can frequency control. Cleaning of the drum is using intermittent automatic flushing. Filter slot equipped with paddle stirrer to prevent starch deposition. And our vacuum dehydrator is equipped with continuously adjustable level control. Dewatering machine is pneumatic controlled scraping blade discharging and the scraper is made of high hardness alloy.

Vacuum dehydrator

The Vacuum dehydrator absorbs the domestic and foreign advanced technology, stable, compact structure, low energy consumption, cover small area, work performance is good, high dewatering rate, no noise, convenient operation and maintenance, and is the ideal choice for large and medium-sized starch production enterprise.

Advantages of vacuum dehydrator:

(1)  Adopts pneumatic scraper, scrape layer uniform and stability;

(2) Filter tank is equipped with automatic agitator, prevent starch sank to the bottom;

(3) Starch dewatering effect is good, has realized automatic discharging, reduce the labor intensity;

(4) Working without noise, stable work, work good continuity, easy to operate.

Vacuum dehydrator

Technical parameter of vacuum dehydrator:

Model	Output(kg/h)	Power(kw)	Outersize(mm)
ZZG3	400	6.6	1600×1650×2200
ZZG4	650	8.1	2000×1600×2200
ZZG15	2000	21.5	4000×1600×2200
ZZG20	4000	21.5	4000×2450×3100

Vacuum dehydrator can applied in following starch production line:

(1) Potato starch production line

(2) Sweet potato starch production line

(3) Cassva starch production line

(4) Corn starch production line

(5) Wheat starch production line
